MIL-DTL-24308/32 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Receptacle, Socket Contacts, Shell Size 2, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-DTL-24308/32
M24308/32-013, -014
M24308/32-113, -114
3W3, 3WK3
M24308/32-015, -016
M24308/32-115, -116
M24308/32-213, -214
M24308/32-215, -216
7W2

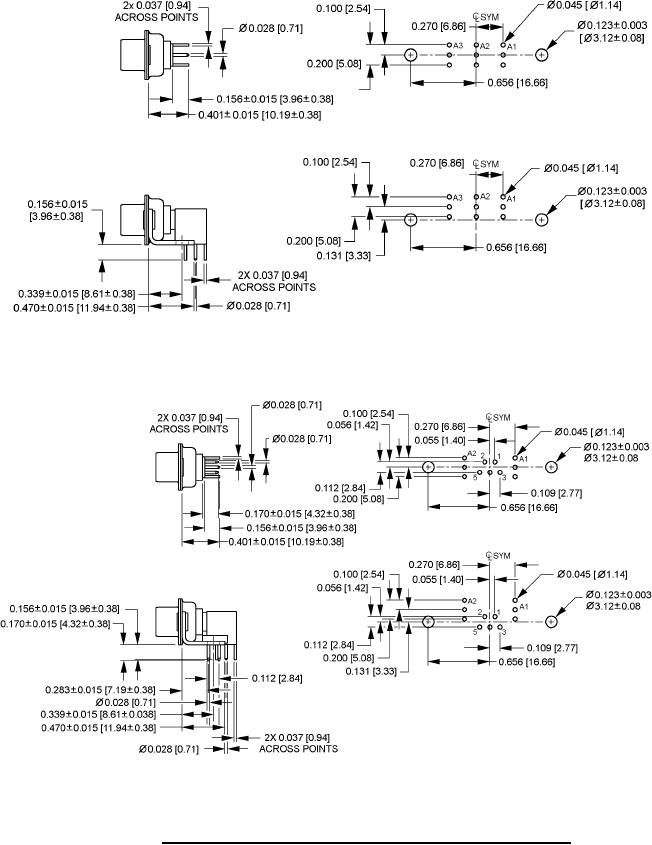

FIGURE 4. Termination and layout arrangements for shielded connectors.
