INCH-POUND
MIL-DTL-24308/39
1 April 2015
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRIC, RECTANGULAR, MINIATURE,
COMBINATION INSERT ARRANGEMENT, PLUG, SOCKET CONTACTS, SHELL SIZE 5,
SIZE 20 SIGNAL CONTACTS AND SIZE 8 POWER AND SHIELDED,
CLASS G, M, N AND D
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-24308.
46W4

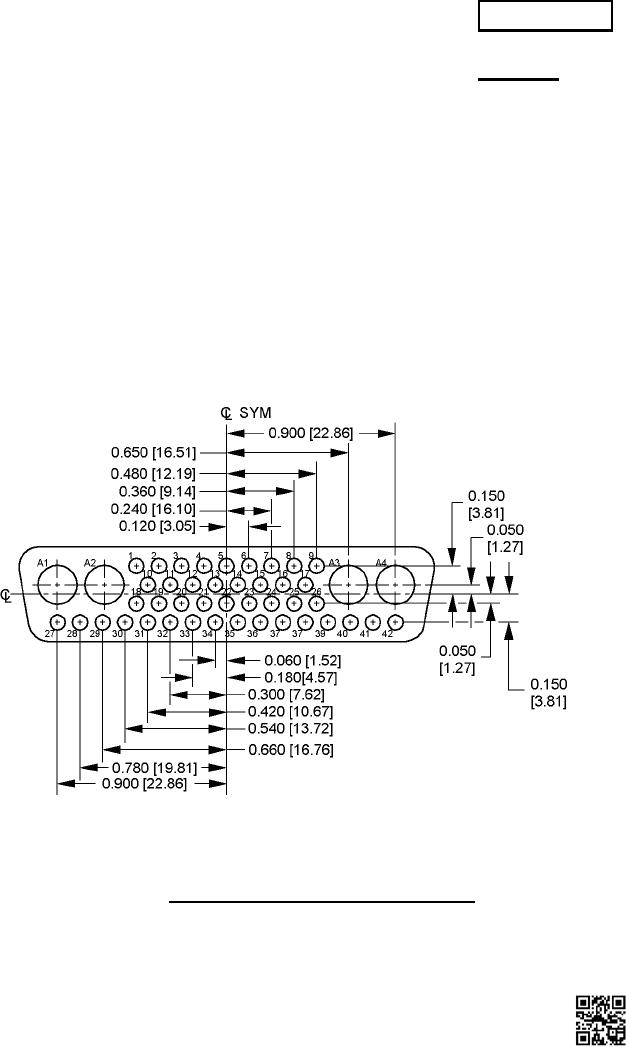

FIGURE 1. Insert arrangements, shell size 5, pin contacts.
AMSC N/A
FSC 5935
