MIL-DTL-2726/15C

Inches

.094

2.39

.188

4.77

.38

9.6

1.125

28.57

1.250

31.75

2.938

74.62

3.312

84.12

6.125

155.57

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm) and � .5� on angles.

4. Supersedes: Drawing 815-1197312, symbol 1146.

5. Mounting bolts: .38 - 16 HEX HD.

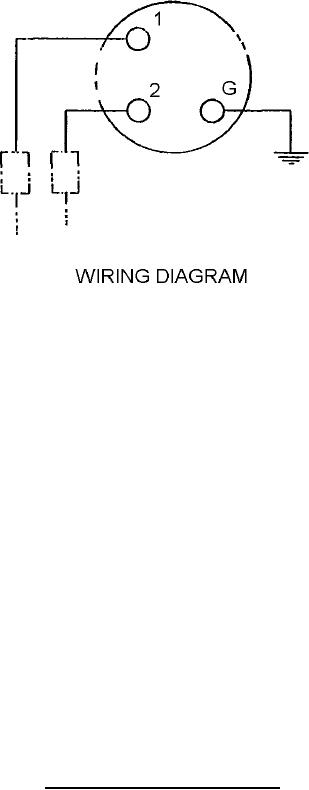

FIGURE 1. Receptacle (symbol 1146.1 shown) � Continued.
