MIL-DTL-2726-17 Receptacle, Electrical, Enclosed, 3 - Pin Grounded, 40 - Ampere, 125 - Volt, Alternating Current \(Symbol Nos. 1148.1, 1148.2 And 1148.3\)

Pages 1 - 2 - 3 - 4 - 5

MIL-DTL-2726/17C

Inches

.094

2.39

.188

4.77

.38

9.6

1.125

28.57

1.250

31.75

2.812

71.42

3.312

84.12

6.125

155.57

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm) and � .5� on angles.

4. Supersedes: Drawing 815 - 1197213, symbol 1148.

5. Mounting bolts: .38 - 16 Hex HD.

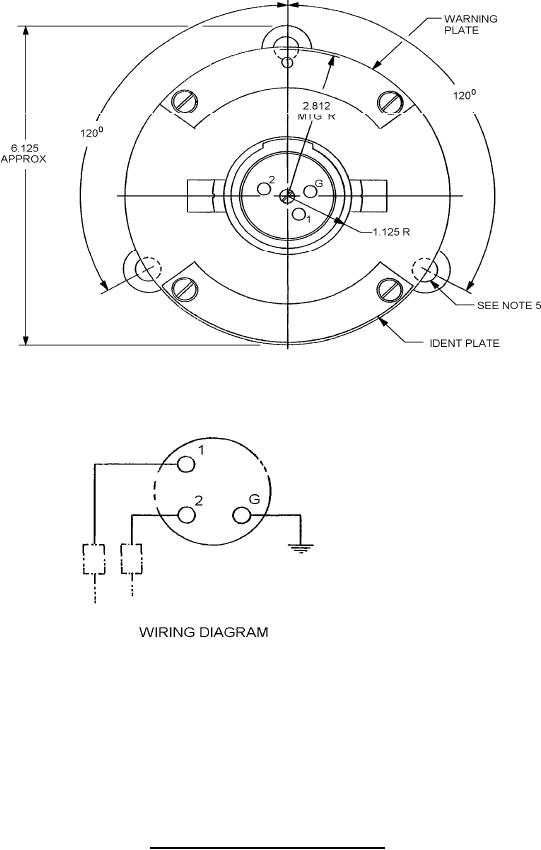

FIGURE 1. Receptacle (symbol 1148.1 shown) � Continued.
