MIL-DTL-2726/22B
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for information only.
3.
Unless otherwise specified, tolerances are ± .016 (0.41mm).
4.
Supersedes: Drawing 9000-S6202-74204, symbol 770.1.

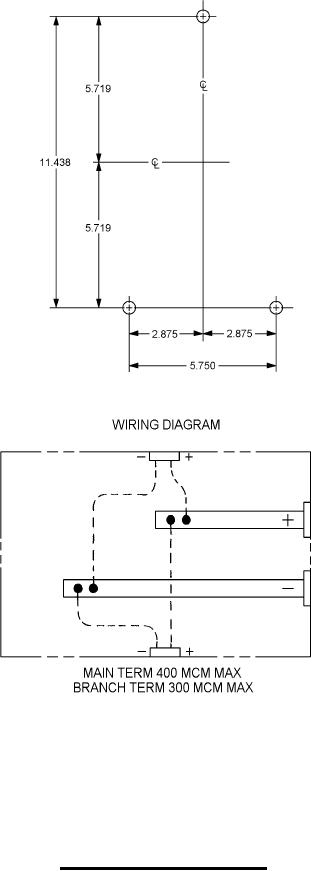

FIGURE 1. Dimensions and configurations - Continued.
3
