MIL-DTL-2726/23B
Inches
mm
.002
0.05
.500
12.70
.812
20.62
2.688
68.27
2.875
73.02
2.879
73.13
3.75
95.2
4.125
104.77
4.500
114.30
6.688
169.87
7.875
200.02
7.938
201.60
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm).
4. Supersedes: Drawing 900-S6202-73966, symbol 726.
5. Part or Identifying Number (PIN) M2726/23-001 used for replacement only.

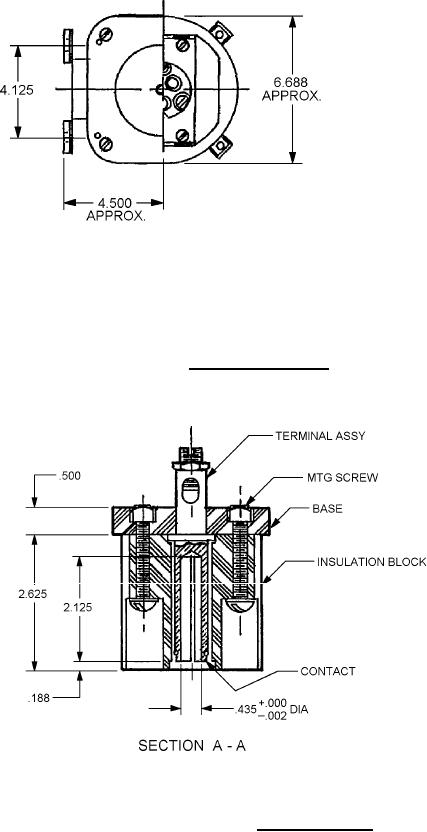

FIGURE 1. Receptacle enclosed - Continued.
Inches
mm
.002
0.05
.125
3.17
.188
4.77
.312
7.93
.435
11.05
.500
12.70
.562
14.27
.625
15.87
.687
17.45
1.750
44.45
53.97
2.125
66.67
2.625
76.20
3.000
107.95
4.250
123.82
4.875
FIGURE 2. Receptacle fitting.
