MIL-DTL-2726/24C

Inches

mm

.002

0.05

1.57

.062

.094

2.39

.156

3.96

.164

4.17

.234

5.94

.281

7.14

.312

7.92

.375

9.52

.406

10.31

.562

14.27

.750

19.05

.812

20.62

1.219

30.96

1.312

33.32

1.44

36.6

1.750

44.45

2.469

62.71

3.062

77.77

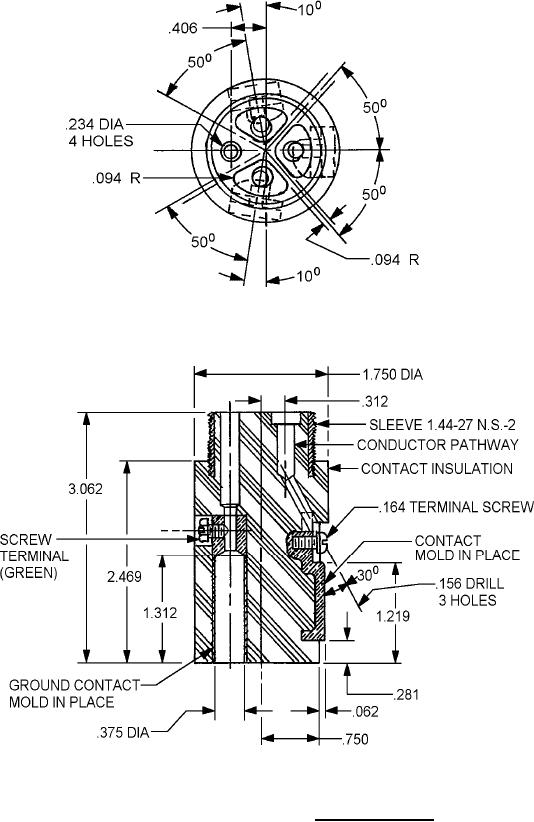

FIGURE 2. Plug tip assembly.

3
