MIL-DTL-2726/25B
Inches
mm
.001
0.02
.002
0.05
.062
1.57
.372
9.45
.385
9.78
.406
10.31
.500
12.70
.562
14.27
.770
19.56
.812
20.62
1.312
33.32
1.594
40.49
1.875
47.62
2.44
62.0
3.500
88.90
8.188
207.97
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.
4. Supersedes: Drawing 9-S-5537-L, symbol 722.
5. Use for replacement only.

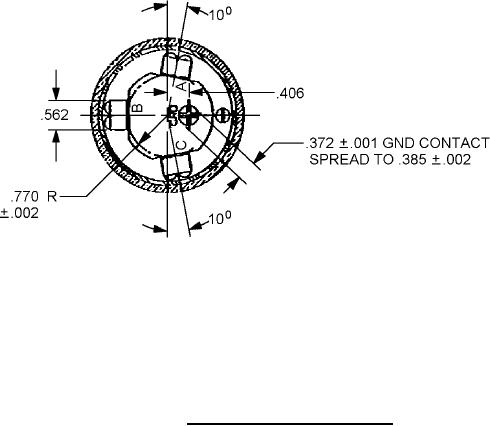

FIGURE 1. Dimensions and configurations - Continued.
REQUIREMENTS
Dimensions and configurations: See figure 1.
Effectiveness of enclosure: Submersible (15-foot) in accordance with MIL-STD-108
when coupled with mating plug.
Strain relief: 30 - Pounds.
Material: Body housing brass.
Spring contacts phosphor bronze, spring temper.
Insulation: In accordance with MIL-I-24768/8 type GMG.
Contact insulation: In accordance with ASTM-D5948 type MAI 60.
Stuffing tube: MIL-S-19622/3, Part or Identifying Number (PIN): M19622/3-004.
Packing assembly: MIL-S-19622/19, PIN M19622/19-0005 is inactive for new design and is no longer
used, except for replacement purposes. For future use should be made under
ASTM-F1836M.
2
