INCH-POUND
MIL-DTL-2726/32B
13 May 2005
SUPERSEDING
MIL-R-2726/32A(SH)
3 July 1986
DETAIL SPECIFICATION SHEET
RECEPTACLE, ELECTRICAL, 10 - AMPERE, 125 - VOLT, SINGLE POLE,
PANEL MOUNTED (SYMBOL NO. 775.1 - BLACK; SYMBOL NO. 775.2 - RED)
Reactivated after 13 May 2005 and may be used for
new and existing designs and acquisitions.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-2726.
Inches
mm
0.13
.005
3.17
.125
3.96
.156
5.54
.218
11.12
.438
11.91
.469
19.05
.750
SH 9110
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm).
4. Supersedes: Drawing 9000-S6202-73482, symbol 775.

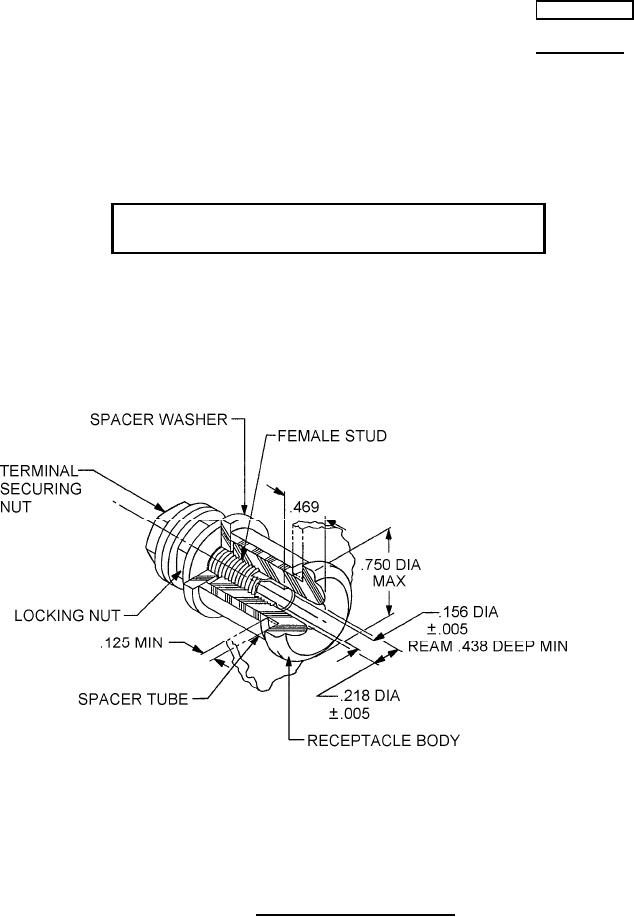

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5935
