MIL-DTL-2726-39 Receptacle And Switch, Electrical, 15 - Ampere, 125 - Volt, Bladed Types, Grounded \(Symbol No. 919\)

Pages 1 - 2 - 3 - 4

MIL-DTL-2726/39B

Inches

.281

7.14

.375

9.52

.406

10.31

1.625

41.27

2.000

50.80

3.062

77.77

3.357

85.27

92.07

3.625

95.25

3.750

142.87

5.625

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm).

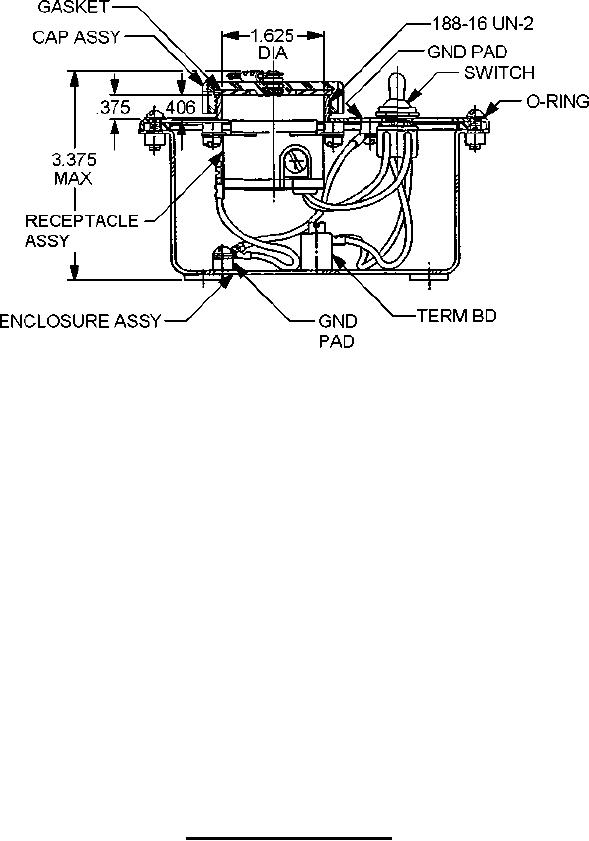

FIGURE 1. Dimensions and configurations - Continued.
