MIL-DTL-2726/39B

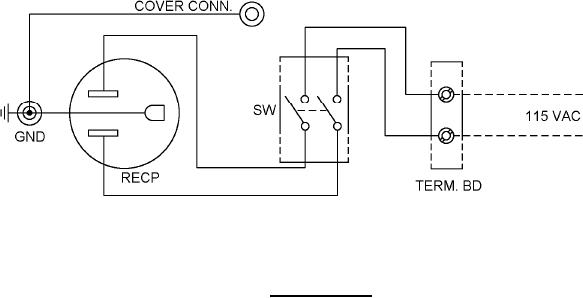

FIGURE 2. Wiring diagram.
REQUIREMENTS
Dimensions and configurations: See figures 1 and 2.
Effectiveness of enclosure: Watertight in accordance with MIL-STD-108.
Receptacle: Shall be in accordance with W-C-596/13, Part or Identifying Number (PIN) W-C-596/13-3.
The ground contact shall be nickel-plated.
Switch: In accordance with MS24524-24 type DPST toggle.
A terminal board shall be furnished and installed.
Mating plug: In accordance with MIL-DTL-2726/38, PIN M2726/38-001.
PIN: M2726/39-001.
Enclosure assembly: In accordance with MIL-E-24142/10, PIN M24142/10-001.
Electrical rating: 15-ampere, 125-volt, alternating current, 60-hertz.
Toggle switch boot shall be furnished and installed on the switch.
VERIFICATION
Verification shall be as specified in MIL-DTL-2726 and table I herein. The first article and conformance
inspections shall consist of the inspections as specified in table I, in the order shown.
