MIL-DTL-2726/42B
Inches
mm
.109
2.77
.156
3.96
.357
9.07
1.062
26.97
3.219
81.76
3.938
100.02
4.500
114.30
7.000
177.80
7.250
184.15
7.875
200.02
8.000
203.20
297.40
11.000
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm).
4. Supersedes: Drawing 9-S-5427L, symbol 746.

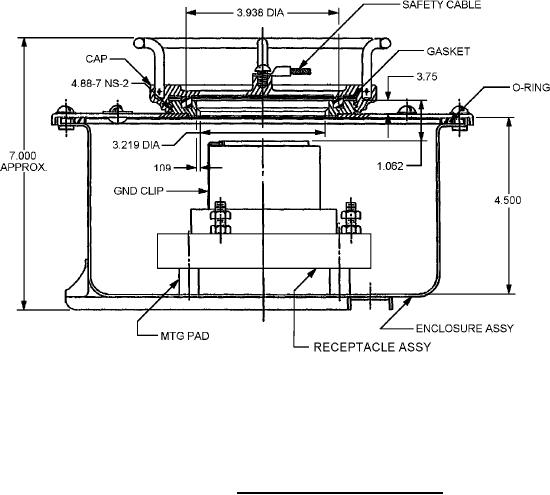

FIGURE 1. Dimensions and configurations - Continued.
REQUIREMENTS
Dimensions and configurations: See figure 1.
Enclosure: In accordance with MIL-E-24142/3, Part or Identifying Number (PIN) M24142/3-001.
Effectiveness of enclosure: Submersible (15-foot) in accordance with MIL-STD-108.
Receptacle: In accordance with MIL-DTL-2726/27, PIN M2726/27-002.
Mating plug: In accordance with MIL-DTL-2726/26, PIN M2726/26-001.
PIN: M2726/42-001.
Gasket: In accordance with MIL-PRF-900, except that the hardness shall be durometer 65.
Electrical rating: 60-ampere, 500-volt, alternating current, 60-hertz.
2
