MIL-DTL-2726/46B
Inches
mm
0.02
.001
0.05
.002
0.13
.005
2.39
.094
3.17
.125
11.10
.437
14.27
.562
17.45
.687
57.15
2.250
72.95
2.872
3.219
81.76
3.75
95.3
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.
4. Supersedes: Drawing 9000-S6202-73965, symbol 721.
5. Use for replacement only.

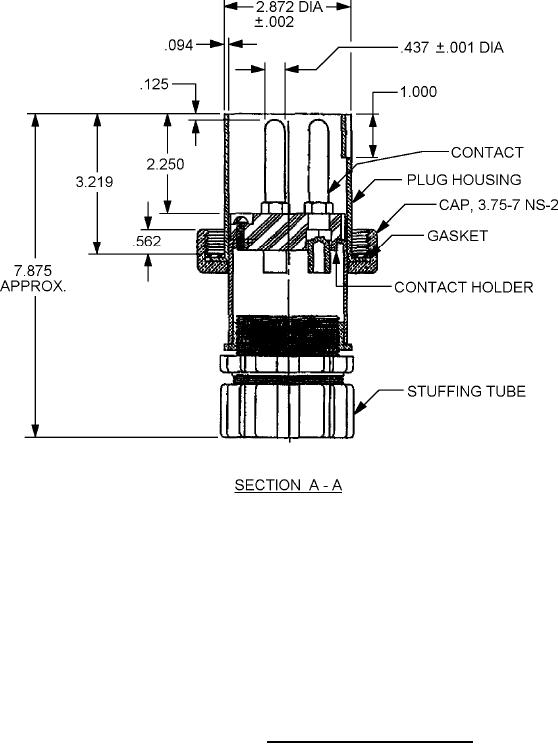

FIGURE 1. Dimensions and configurations - Continued.
