MIL-DTL-2726-48 Receptacle And Switch, Electrical, Enclosed, 15-Ampere, 125-Volt, Interlocking, Grounded \(Symbol No. 900.1\)

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-DTL-2726/48D

Inches

0.79

.031

1.14

.045

4.06

.160

NOTES:

4.93

.194

1. Dimensions are in inches.

5.08

.200

2. Metric equivalents are given for information only.

5.56

.219

3. Cable length "A" may be 6 inches or 10 inches.

7.37

.290

13.97

.550

152.40

6.00

254.00

10.00

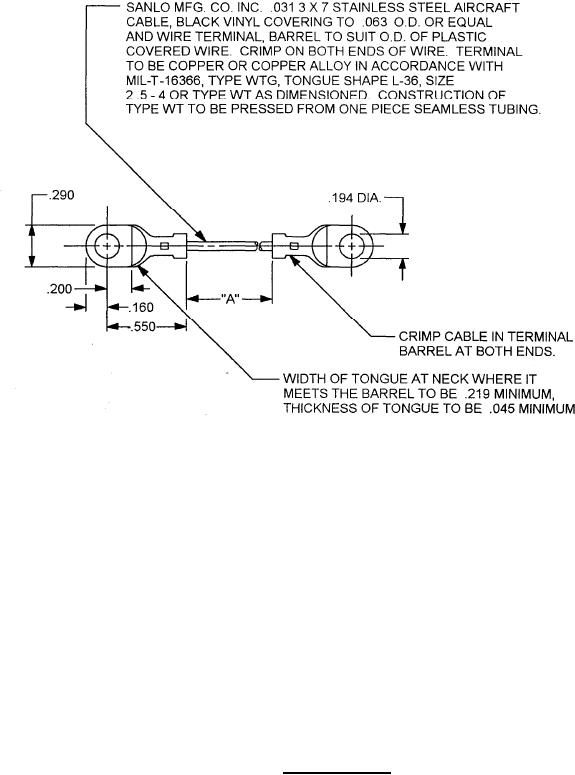

FIGURE 2. Cable assembly.
