MIL-DTL-2726-69 Receptacle, Outlet, Triple, Electrical, Portable, 15-Ampere, 125-Volt Alternating Current, Double Pole, Grounded, 25-Foot Cable Extension \(Symbol No. 779\)

Pages 1 - 2 - 3

MIL-DTL-2726/69C

SH 9430A

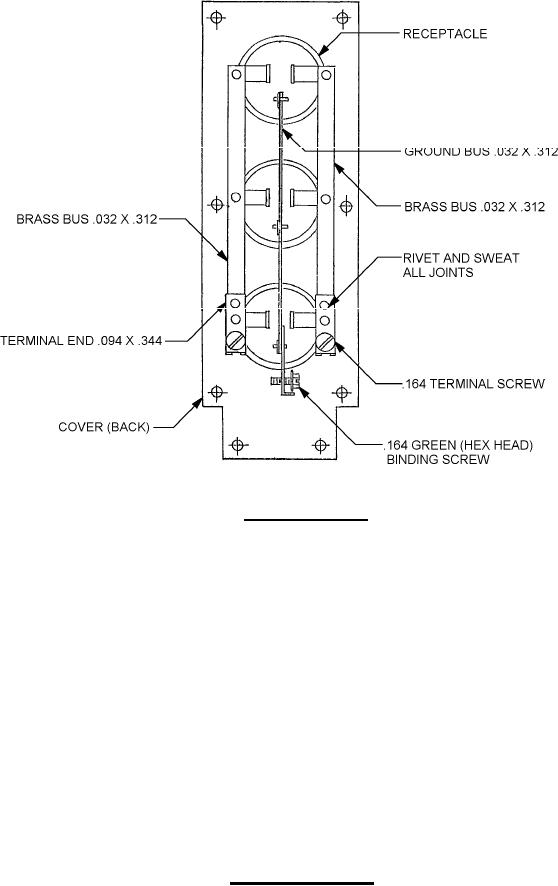

TYPICAL WIRING

Inches

0.81

.032

2.39

.094

4.17

.164

4.83

.190

.312

7.92

8.74

.344

9.53

.375

12.70

.500

53.98

2.125

55.55

2.187

82.55

3.250

250.83

9.875

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm) and � 0�30' on angles.

FIGURE 1. Receptacle assembly � Continued.
