INCH-POUND
MIL-DTL-2726/72C
31 August 2005
SUPERSEDING
MIL-R-2726/72B(SH)
3 July 1986
DETAIL SPECIFICATION SHEET
RECEPTACLE, ADAPTER, ELECTRICAL, 15-AMPERE, 125-VOLT,
ALTERNATING CURRENT, 60 TO 400-HERTZ GROUNDED (SYMBOL NO. 2439)
Inactive for new design after 28 June 1999.
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL-DTL-2726.
SH 9658A
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± .5° on angles.

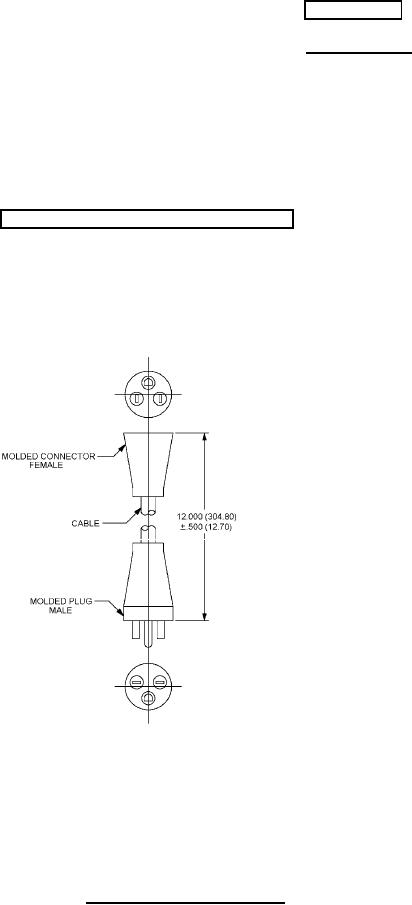

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5935
