MIL-DTL-27434/16A
Inches
mm
.001
0.02
.002
0.05
.004
0.10
.635
16.13
.789
20.04
.810
20.57
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

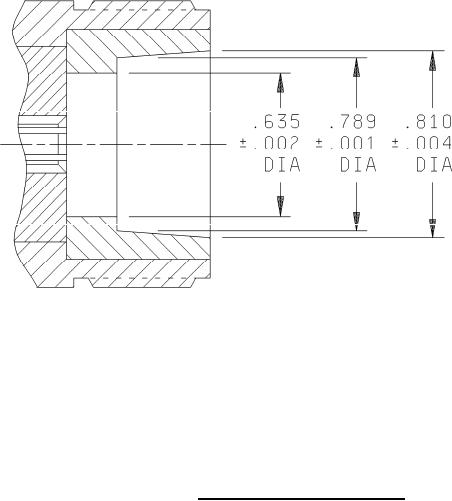

FIGURE 2. Series LT interface dimensions.
ENGINEERING DATA:
Impedance: 50 ohms, nominal.
Frequency range: 0 to 1 GHz.
Voltage rating: 4,000 V rms, maximum at sea level.
1,000 V rms, maximum at 70,000 feet.
Temperature rating: -65º C to +165º C.
REQUIREMENTS:
Dimensions and configuration: See figure 1.
Mating characteristics: Series LC socket contact interface in accordance with MIL-DTL-27434 and
series LT socket contact interface as specified on figure 2.
2
