MIL-DTL-27434/30A

Inches

millimeters

.001

0.02

.002

0.05

.093

2.36

.200

5.08

.288

7.31

.413

10.49

.625

15.87

NOTES:

1. All dimensions are in inches.

2. Unless otherwise specified, tolerances are �.005 inch.

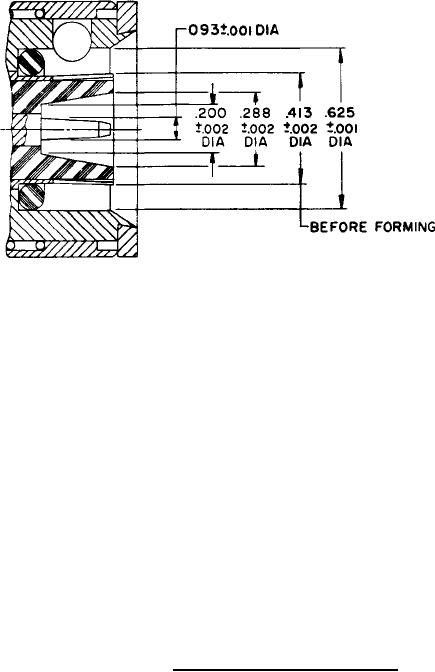

FIGURE 2. Series QDS Pin Contact Interface.
