MIL-DTL-27434-32 Adapter, Connector, Coaxial, Radiofrequency, Between Series, Type Ug-1144/U \(Series N To Qds\)

Pages 1 - 2 - 3

MIL-DTL-27434/32B

Inches

millimeters

.001

0.02

.002

0.05

.093

2.36

.200

5.08

.288

7.31

.413

10.49

.625

15.87

Notes:

1. Dimensions are in inches.

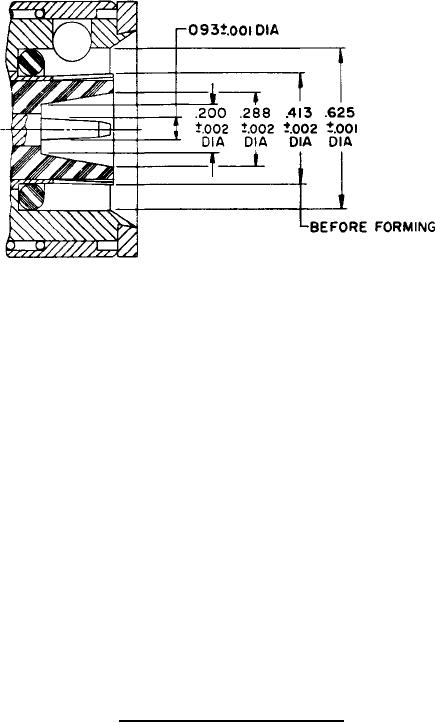

FIGURE 2. Series QDS Pin Contact Interface.

2
