INCH-POUND
MIL-DTL-28731/23G
15 March 2004
SUPERSEDING
MIL-C-28731/23F
29 October 1992
DETAIL SPECIFICATION SHEET
CONNECTOR ELECTRICIAL, CONTACT, FORK TYPE,
REMOVABLE, DOUBLE WIRE CRIMP
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-28731.
Inches
mm
0.08
.003
0.38
.015
0.5
.02
0.56
.022
2.0
.08
2.3
.09
2.5
.10
3.18
.125
4.6
.18
4.8
.19
5.8
.23
.610
15.49
NOTES:
1.098
27.89
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified the tolerance for three place decimals is ± .010 (0.25 mm).
4. The adepter shall be crimped as shown to a contact in accordance with MIL-DTL-28731.

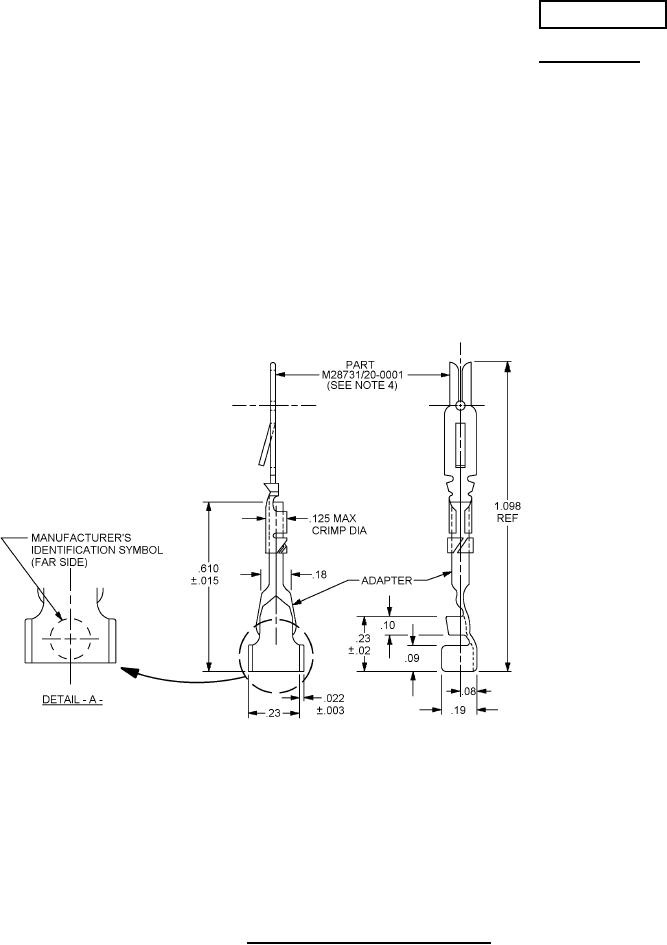

FIGURE 1. Contact, fork type, double wire crimp.
AMSC N/A
FSC 5935
