INCH-POUND
MIL-DTL-28731/26C
15 March 2004
SUPERSEDING
MIL-C-28731/26B
4 June 1985
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, CONTACT, FORK TYPE, WRAPPOST, REMOVABLE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-28731.
Inches
mm
.001
0.03
.0015
0.038
.003
0.08
.025
0.64
.065
1.65
.115
2.92
.120
3.05
.123
3.12
.195
4.95
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .010 (0.25 mm).
4. Contact insertion and removal tools MIL-I-81969/13-01 and MIL-I-81969/11-01.
5. Contacts shall be permanently imprinted with manufacturers symbol for purpose of identifying
manufacturers product (see detail A).

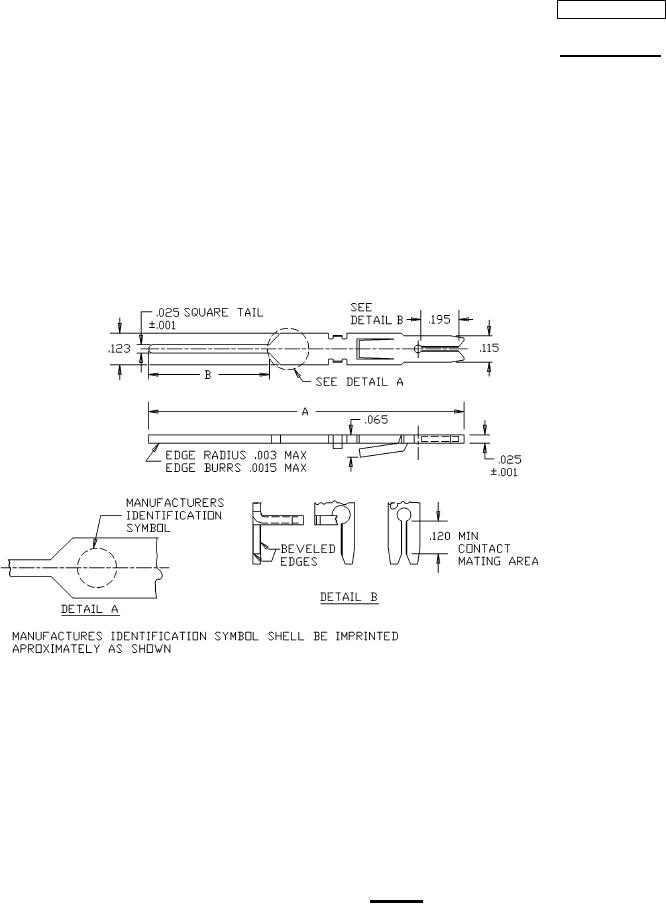

FIGURE 1. Contact.
AMSC N/A
FSC 5935
