MIL-DTL-28731/36C
Inches
mm
0.00027
.000005
0.000254
.0000100
0.13
.005
2.54
.100
6.35
.250
6.76
.266
12.19
.480
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±. 005 (0.13 mm). All dimensions are for parts after plating.
4. Contact relief hold configuration, optional.
5. Contact insertion and removal tool, MIL-I-81969/5-01 and MIL-I-81969/4-02.
6. The Government has a royalty-free license under the following listed patents for the benefit of
manufacturers of the items either for the Government or for use in equipment to be delivered to the
Government. Patent notice: Patent No. 3,248,686 owned by Elco Corporation.

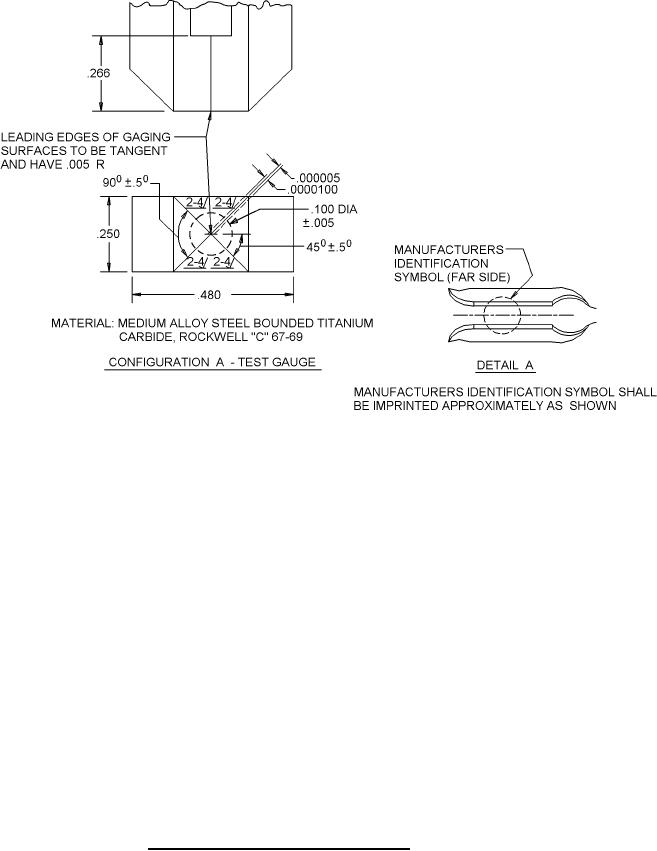

FIGURE 1. Contact, fork type, wrappost removable - Continued.
