MIL-DTL-28731/38A
Inches
mm
.060
1.52
.468
11.89
.750
19.05
1 020
25.91
1 481
37.61
1.622
41.20
2 102
53.39
2.280
57.91
2.520
64.00
2.600
66 04
2.745
69.72
3.050
77.47
3.180
80.77
3.530
89.66
4.150
105.41
Style B
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .015 (0.37 mm).

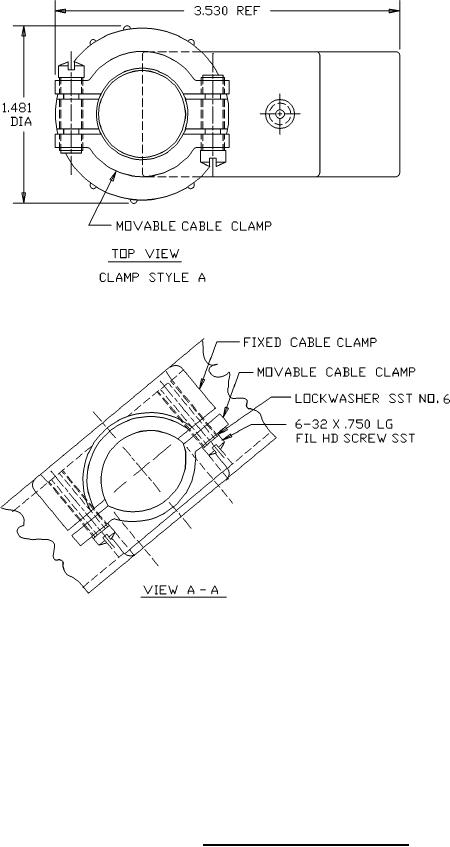

FIGURE 1. Shield rectangular cable clamp - Continued.
