MIL-DTL-28731/38A
Inches
mm
.187
4.75
.562
14.27
.900
22.86
.915
23.24
1.120
28.45
1.123
28.52
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .015 (0.37 mm).
4. Unless otherwise specified, shields are supplied assembled as shown on figure 1.
5. Shield assembly is used with connector assembly M28731/32-0002.
6. Maximum cable size for both styles is .900 inch diameter.

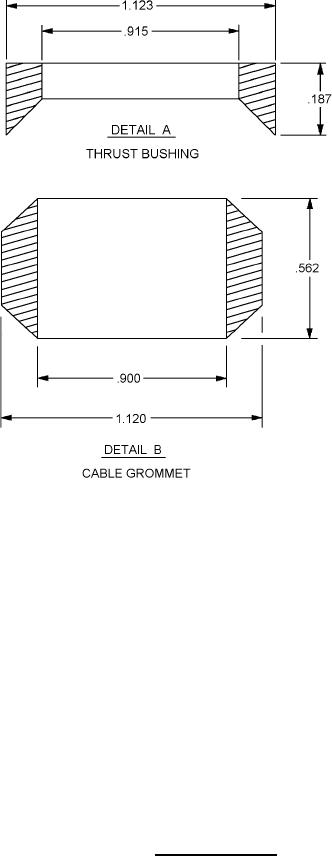

FIGURE 2. Shield rectangular.
