MIL-DTL-28748/1E
Inches
mm
.002
0.05
.003
0.08
.005
0.13
.008
0.20
.010
0.25
.016
0.41
.02
0.5
.020
0.51
.030
0.76
.075
1.91
.110
2.79
.143
3.63
.150
3.81
.151
3.84
.180
4.57
.195
4.95
.234
5.97
.254
6.45
.260
6.60
.38
9.7
.768
19.50
.878
22.30
1.536
39.01
1.806
44.97
2.389
60.68
2.769
70.33

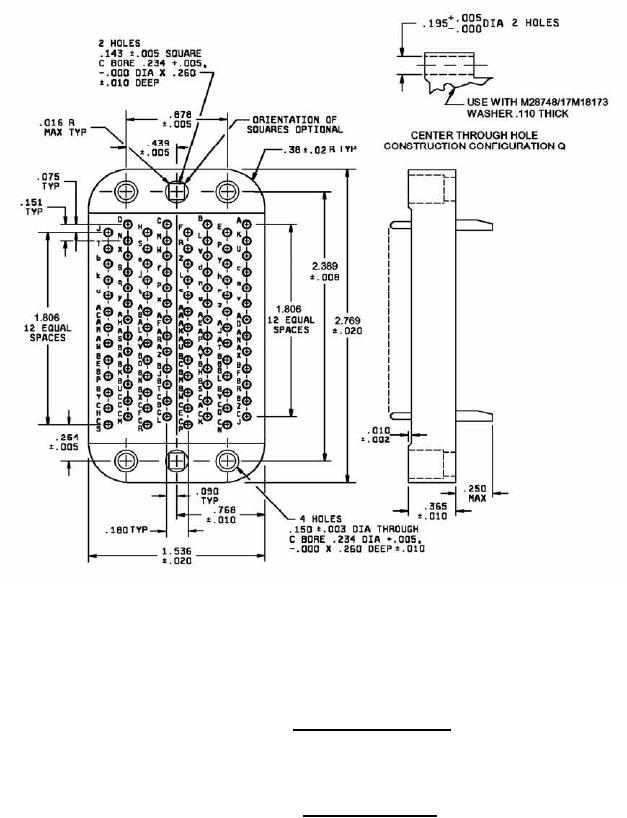

Configuration J - Suitable for all applications, except one-piece jackscrews.
Configuration Q - For long jackscrews and hood only (through hole alternate construction).
Insert with 104 contacts
Insert designators J and Q
FIGURE 2. Insert arrangements - Continued.
