MIL-DTL-28748/1E
Inches
mm
Inches
mm
Inches
mm
6.60
.260
2.3
.09
0.05
.002
9.27
.365
3.63
.143
0.13
.005
9.53
.375
3.84
.151
0.25
.010
11.48
.452
4.37
.172
0.41
.016
15.32
.603
4.75
.187
0.5
.02
25.45
1.002
4.95
.195
0.51
.020
33.45
1.317
5.08
.200
1.91
.075
6.35
.250
2.18
.086
Insert with 9 contacts
Insert designator A

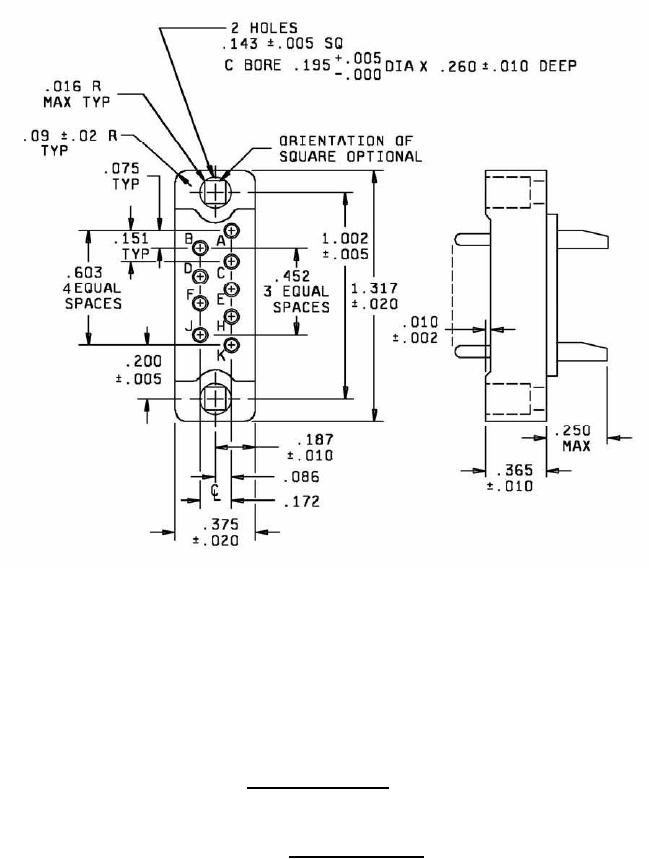

FIGURE 2. Insert arrangements.
