MIL-DTL-28748/7F
Contact
X
H
position
max
max
4
.210
.300
7
.210
.300
14
.210
.350
20
.210
.350
26
.150
.400
34
.100
.400
44
.100
.500
50
.100
.500

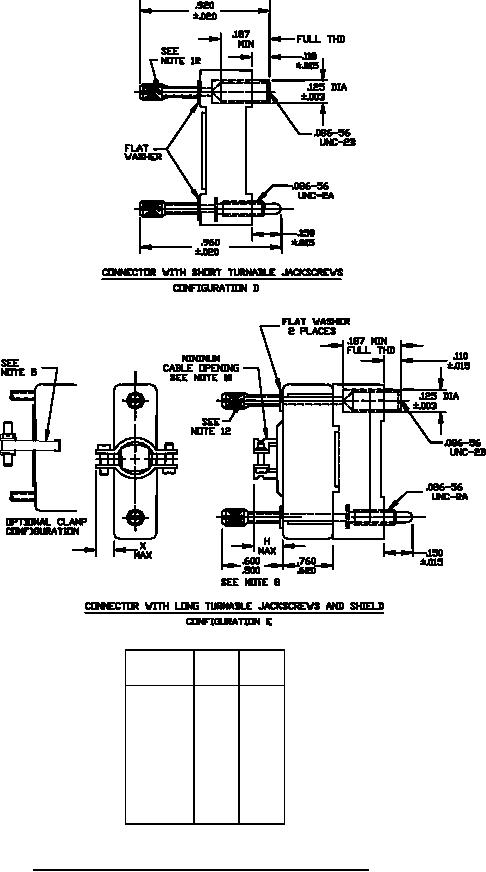

FIGURE 1. Connector with shields, jackscrews, and guidepins Continued.
