MIL-DTL-28840/19E
REQUIREMENTS:
Dimensions and configuration: See figure 1.
Classes: D and DS, P, T, TS, Z and ZS.
Insert Arrangements: See the figure of MIL-STD-1698 corresponding to the desired shell size.
Contacts: Pin or socket, crimp type, styles P, S, D, E, F or G, in accordance with MIL-DTL-28840.
Shell polarization: 1 thru 6, key position.
Marking: Part or Identifying Number (PIN) on shell.
Mating counterpart: Mating connectors in accordance with MIL-DTL-28840/10, /11, /12, /14, /20 and
/21.
Installation and removal tool: In accordance with MIL-I-81969/33 and /34.
PIN's shown indicate aluminum alloy hardware. If corrosion resistant steel parts are required,
the connector and accessory PIN must be changed to designate corrosion resistant
hardware.

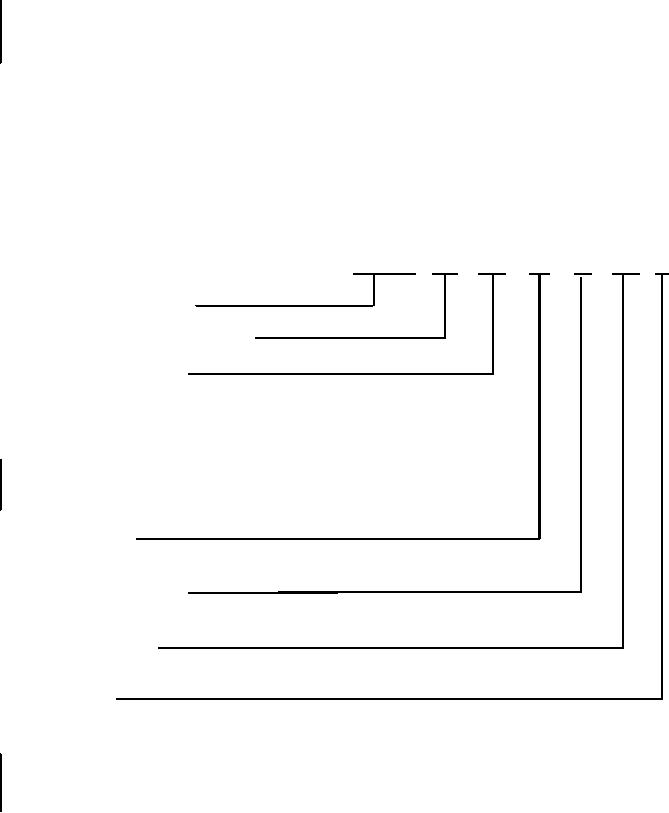

PIN example:
M28840/
19
A
G
1
P
1
Military designator
Specification sheet number
Class code letter
(Class D, code letter A)
(Class DS, code letter B)
(Class P, code letter F
(Class T, code letter L)
(Class TS, code letter N)
(Class Z, code letter S)
(Class ZS, code letter R)
Shell size
(See figure 1)
Insert arrangement
(See figure 1 and MIL-STD-1698)
Contact style
(See MIL-DTL-28840)
Keying
(See MIL-DTL-28840)
RESTRICTIONS:
Classes D and DS are inactive for NAVSEA new design, unless approved by NAVSEA.
4
