MIL-DTL-3655/1C
Inches mm
Inches mm
.001 0.03
.250 6.35
.002 0.05
.533 13.54
.005 0.13
.750 19.05
.053 1.35
.765 19.43
.062 1.57
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances shall be .005 inch.

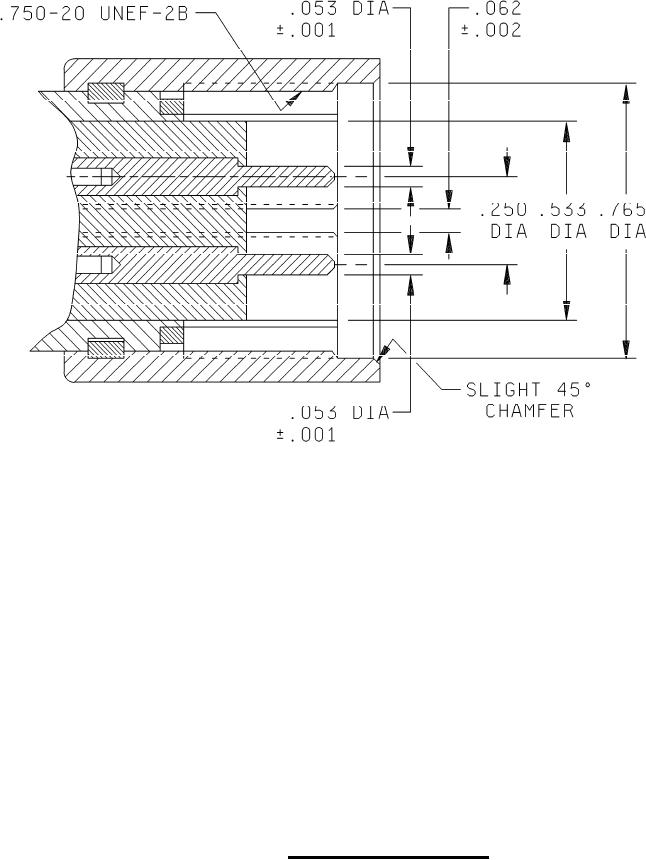

FIGURE 2. Interface mating requirements.
