INCH POUND
MIL-DTL-3655/14B
4 October 1999
SUPERSEDING
MIL-C-3655/14A
11 April 1980
DETAIL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, CLASS I
(COAXIAL, SERIES TWIN, TWTNC)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-C-3655.
Inches
Mm
.44
11.2
.650
16.51
1.500
33.10
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Wrench flats are to accommodate standard wrench openings in accordance with
H-28 appendix 10.
4. Unless otherwise specified, tolerance is . 005 (.13 mm).
5. All undimensioned pictorial configurations are for reference purposes only.
6. Dimensions define the maximum length of the connector when assembled to the appropriate
cable.

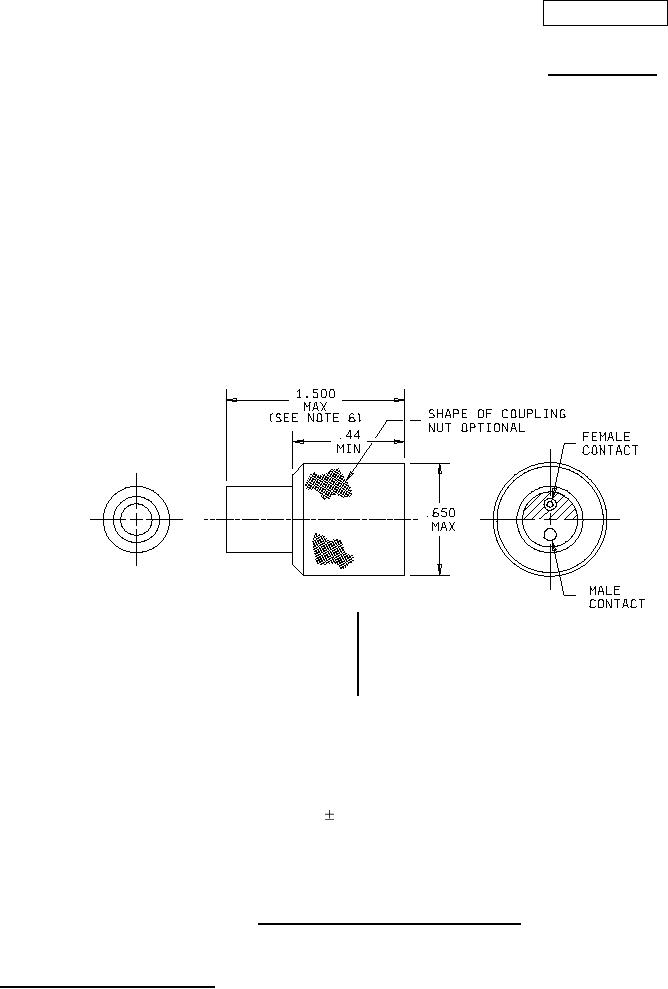

FIGURE 1. Type TWTNC, electrical plug connector.
AMSC N/A
1 of 4
FSC 5935
