INCH POUND
MIL-DTL-3655/9E
18 March 2008
SUPERSEDING
MIL-C-3655/9D
11 April 1980
DETAIL SPECIFICATION SHEET
CONNECTOR, PLUG, ELECTRICAL, CLASS I
(COAXIAL, SERIES TWIN) TYPE UG-1060A/U
Inactive for new design
after 11 April 1980
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-3655.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, the tolerance is ± 005 (0.13 mm).
4. Item 4 to be assembled with small amount of Dow-Corning compound No. 4, or equal.
5. Polarizing key position on one end must be located 180º from polarizing key on opposite end.

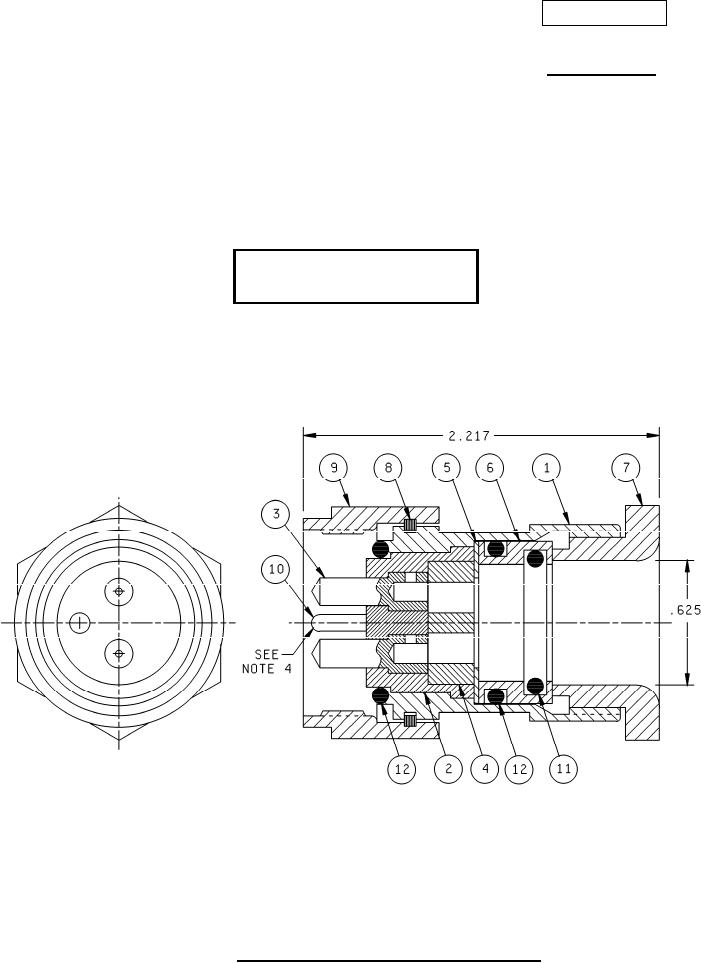

FIGURE 1. Type UG-1060A/U, connector, plug, electrical.
