METRIC
MIL-DTL-38999/40B
14 August 2009
SUPERSEDING
MIL-DTL-38999/40A
11 June 2001
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, CIRCULAR, RECEPTACLE,
WALL MOUNTING FLANGE, BREECH COUPLING,
REMOVABLE CRIMP CONTACTS, SERIES IV, METRIC
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-38999.
mm
Inches
.2
.008
.4
.016
.9
.035

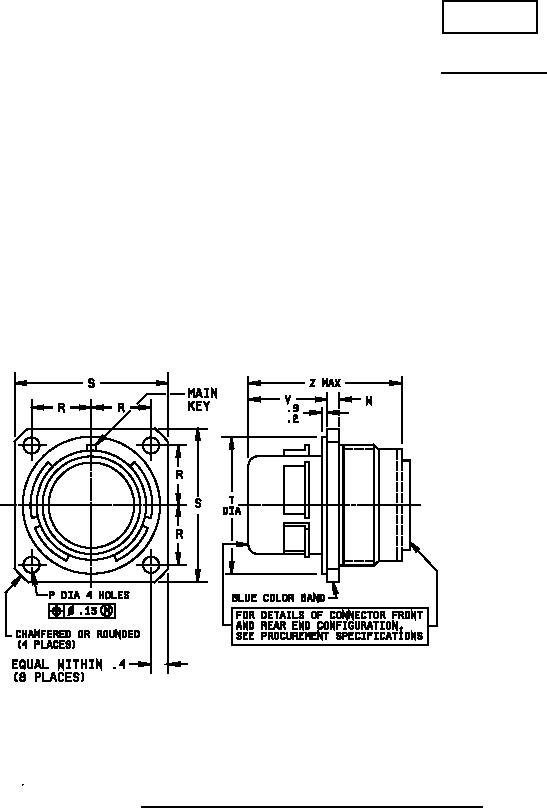

FIGURE 1. Receptacle, classes C, F, K, P, R, S, T, W, X and Z.
AMSC N/A
FSC 5935
