MIL-DTL-38999/40B
REQUIREMENTS:
Dimensions and configurations: See figure 1.
Interface dimensions shall conform to MIL-DTL-38999.
This connector mates with MIL-DTL-38999/46 and /47.
Main key color: Blue.
For insert arrangements: See MIL-STD-1560.
Class K is not for Air Force use.

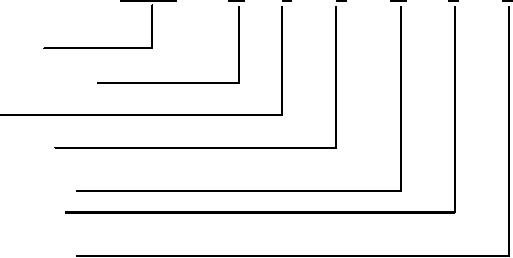

Part or Identifying Number (PIN) example:
D38999/
40
F
A
35
P
N
DoD prefix
Specification sheet no.
Class
Shell size code
Insert arrangement
Contact style
Polarizing position:
N is required for normal position
Changes from previous issue. Marginal notations are not used in this revision to identify changes with
respect to the previous issue due to the extent of the changes.
Referenced documents. In addition to MIL-DTL-38999, this document references the following:
MIL-DTL-38999/46
MIL-DTL-38999/47
MIL-STD-1560
3
