INCH-POUND
MIL-DTL-39024/13D
7 February 2011
SUPERSEDING
MIL-DTL-39024/13C
22 September 2008
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, TEST POINT TYPE, PRINTED WIRING TYPE;
SINGLE TEST POINT (RIGHT ANGLE, 2-LEG MOUNTING), LOW VOLTAGE, .080
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-39024.
HOLE TO RECEIVE .080 ± .001
DIA PROBE X .450 LONG
Inches
mm
.001
0.03
.050
1.27
.080
2.03
.118
3.00
.235
5.97
.485
12.32
.5
12.7
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. See table I for dimensions not specified on figure 1.
4. Unless otherwise specified, tolerances are .010 (0.25 mm), and are based on 1 inch = 25.4 mm.
5. All undimensioned pictorial configurations are for reference purposes only.

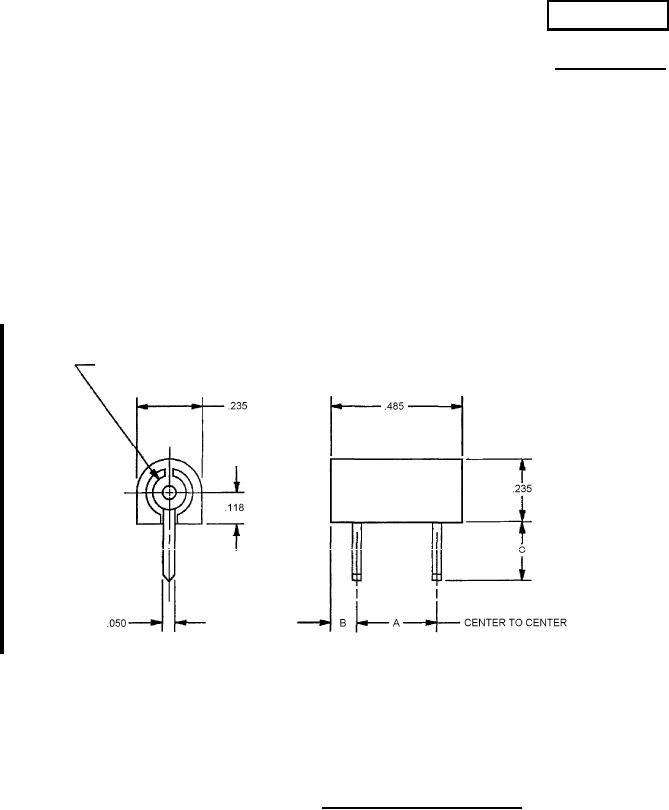

FIGURE 1. Configuration and dimensions.
AMSC N/A
FSC 5935
