MIL-DTL-55181/4D
CONTACT
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.005
0.12
.074
1.88
.190
4.83
1.111
28.11
.010
0.25
.078
1.98
.233
5.92
1.115
28.32
.015
0.38
.086
2.18
.235
5.97
1.178
29.92
.016
0.40
.092
2.34
.250
6.35
1.184
30.07
.026
0.66
.110
2.79
.275
6.99
1.250
31.75
.028
0.71
.125
3.17
.378
9.60
1.260
32.00
.034
0.86
.156
3.96
.466
11.84
1.378
35.00
.044
1.12
.176
4.47
.470
11.94
1.437
37.41
.046
1.17
.184
4.67
.850
21.59
1.468
37.29
.069
1.75
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified tolerances are ±.005 inch (0.13 mm) for three place decimals and
±.01 inch (0.3 mm) for two place decimals.
4. Angular tolerances shall be ±30 minutes unless otherwise specified.

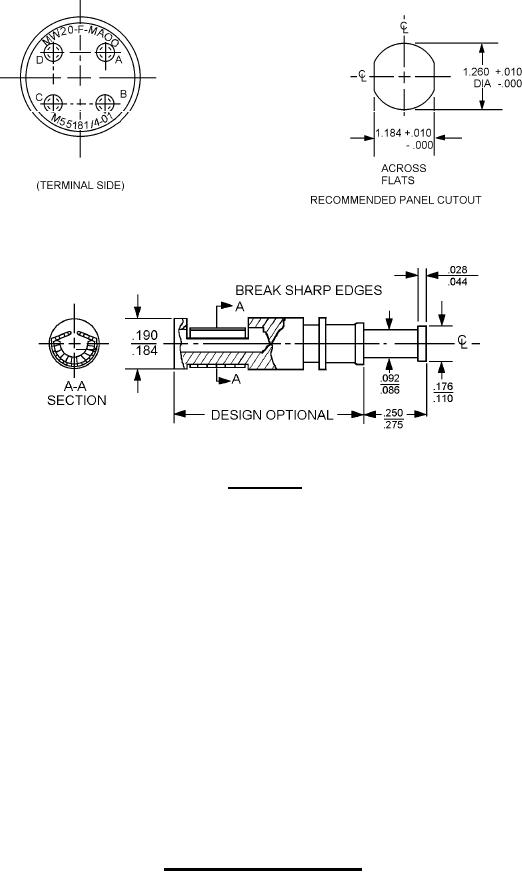

FIGURE 1. Dimensions and configuration - Continued.
2
