MIL-DTL-55181/4D
Inches
mm
Outside diameter ØB
Inside diameter ØA
Thickness C
.16
4.06
Inches (mm)
Inches (mm)
Inches (mm)
.25
6.35
1.468 (37.29)
1.255 (31.88)
.052 (1.32) - .060 (1.52)
.38
9.65
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified tolerances are ±.005 inch (0.13 mm) for three place decimals and
±.01 inch (0.3 mm) for two place decimals.
4. Material: Carbon steel, cadmium plated in accordance with SAE-AMS-2700.
5. The number of teeth shall be at the option of the manufacturer.

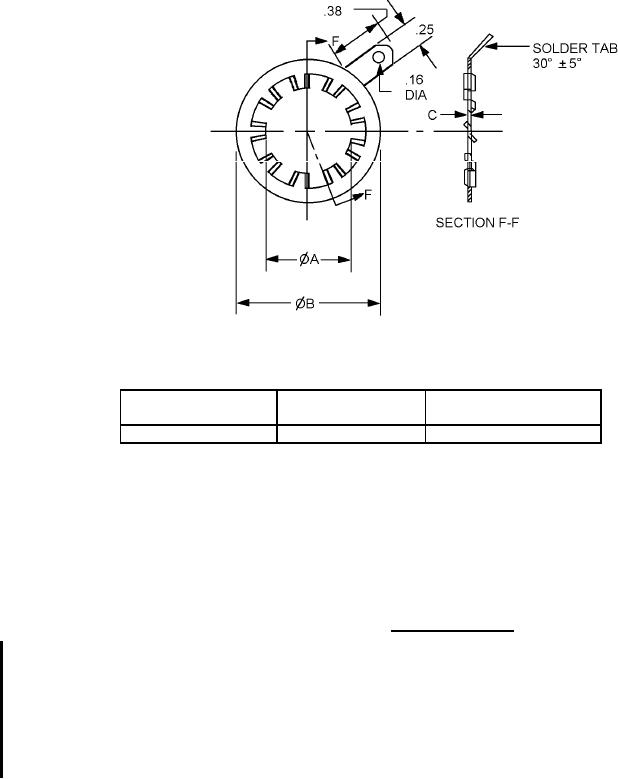

FIGURE 2. Grounding washer.
REQUIREMENTS:
Dimensions and configuration: See figures 1 and 2, and table I.
Contacts: 35 ampere current rating, 12 AWG.
Mating connectors: M55181/3-01, M55181/3-02, M55181/3-03, and M55181/3-04.
Part or Identifying Number (PIN): The PIN shall be as specified in table I.
Supersession, cross-reference and mating connectors: See table II.
3
