MIL-DTL-55181/8D
Inches
mm
Outside diameter ØB
Inside diameter ØA
Thickness C
4.06
.16
Inches (mm)
Inches (mm)
Inches (mm)
6.35
.25
1.468 (37.29)
1.255 (31.88)
.052 (1.32) - .060 (1.52)
9.65
.38
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified tolerances are ±.005 inch (0.13 mm) for three place decimals and
±.01 inch (0.3 mm) for two place decimals.
4. Material: Carbon steel, cadmium plated in accordance with SAE-AMS-2700.
5. The number of teeth shall be at the option of the manufacturer.

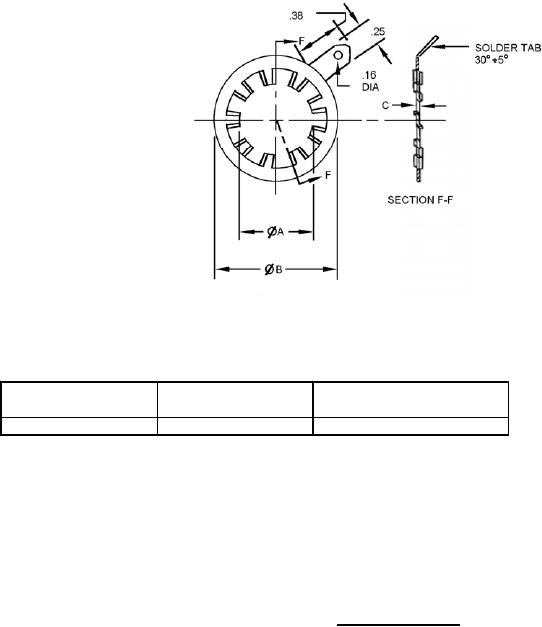

FIGURE 2. Grounding washer.
