MIL-DTL-55302/127C

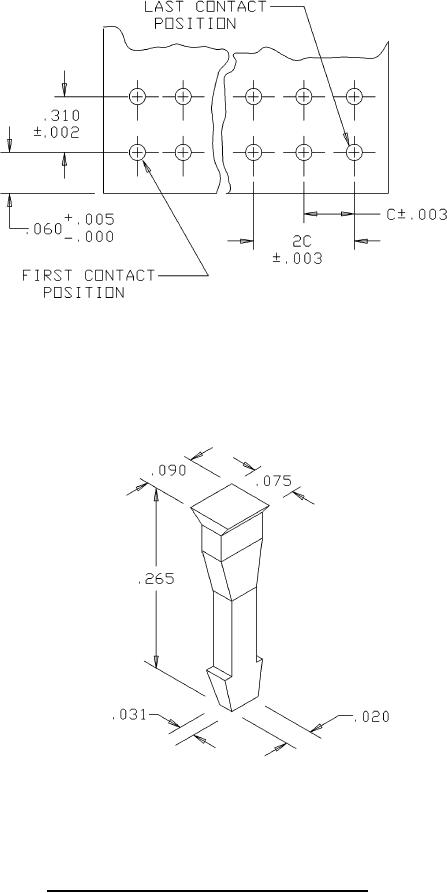

Recommended printed circuit board hole layout
C Contact centerline to be .100 (2.54 mm);
± .003 (.08 mm) tolerances not to
accumulate within one connector pattern.
Key plug
Part or Identifying Number (PIN) M55302/127-00KY
FIGURE 1. Connectors, receptacle, .100 (2.54 mm) spacing Continued.
