MIL-DTL-55302/127C
Oversize pin exclusion: Applies to sockets only, shall not accept a .050 inch diameter pin.
Contact bend test: The body of the contact shall be slowly inclined so as to bend the contact through
90° and then return it to the original position. A bend through 90° and return to original position shall
be defined as one bend. The test shall include three bending cycles.
Markings: In accordance with MIL-STD-1285. Cavity identification in accordance with figure 1.

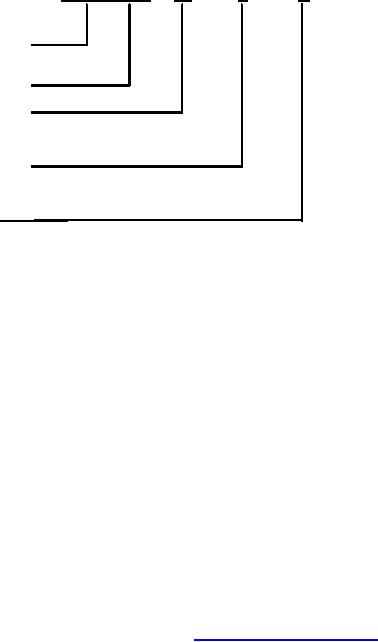

PIN example:
02
1
C
M55302/127-
Military designator
Specification sheet
Number of contacts
(see table I)
P.C. board type
(see table II)
Plating code
(see table III)
Changes from previous issue. Marginal notations are not used in this revision to identify changes with
respect to the extent of the changes.
Referenced documents. In addition to MIL-DTL-55302, this document references the following:
MIL-STD-1285
ASTM D4066
CONCLUDING MATERIAL
Custodians:
Preparing activity:
Air Force 11
DLA - CC
DLA - CC
Review activities:
(Project 5935-4479-000)
Air Force 19, 99
NOTE: The activities listed above were interested in this document as of the date of this document.
Since organizations and responsibilities can change, you should verify the currency of the information
above using the ASSIST Online database at https://www.dodssp.daps.mil.
