MIL-DTL-55302-130 Connectors, Printed Circuit Subassembly And Accessories: Receptacles, 90 Through 240 Contact Positions, For Printed Wiring Boards \(.100 Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

INCH-POUND

MIL-DTL-55302/130D

9 January 2004

SUPERSEDING

MIL-C-55302/130C

29 April 1993

DETAIL SPECIFICATION SHEET

CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:

RECEPTACLES, 90 THROUGH 240 CONTACT POSITIONS,

FOR PRINTED WIRING BOARDS (.100 SPACING)

This specification is approved for used by all Departments and Agencies of the Department of Defense.

The requirements for acquiring the product described herein shall consist of this specification sheet and

MIL-DTL-55302.

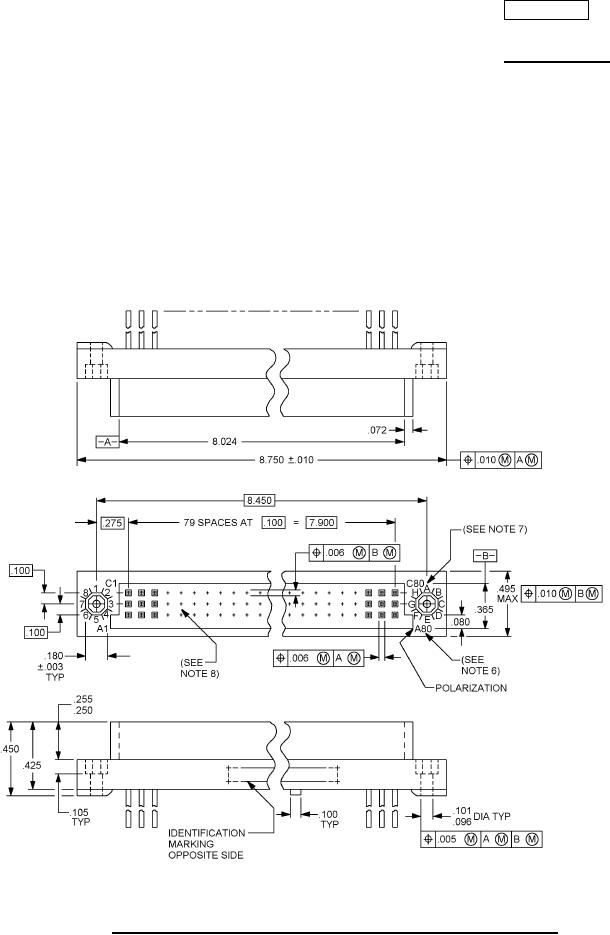

FIGURE 1. Connectors, kit receptacle, .100 (25.4 mm) spacing, 160 and 240 contacts.

AMSC N/A

FSC 5935
