MIL-DTL-55302/140C

Inches

.002

0.05

.099

2.51

.126

3.20

.004

0.10

.100

2.54

.160

4.06

.031

0.79

.110

2.79

.200

5.08

.050

1.27

.116

2.95

.250

6.35

.087

2.21

.118

3.00

.726

18.44

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

4. Metric equivalents are in parentheses.

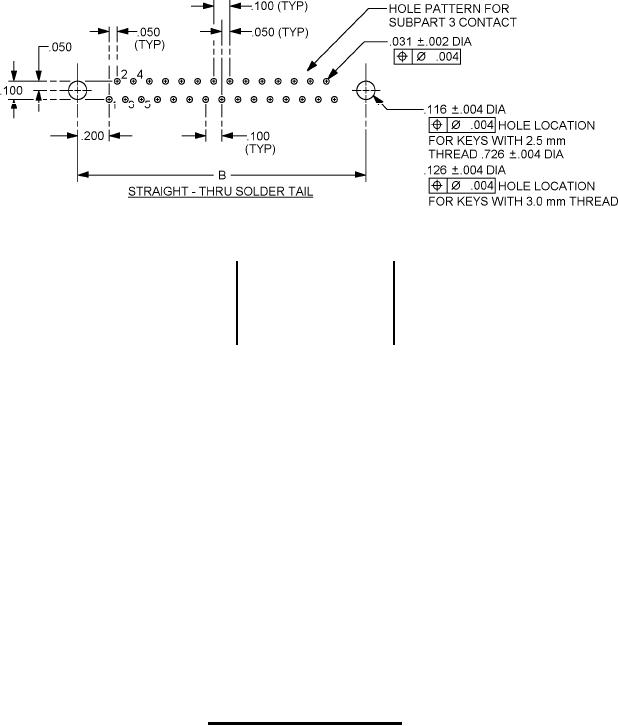

FIGURE 2. Recommended hole patterns � Continued.
