MIL-DTL-55302-142 Connectors, Printed Circuit Subassembly And Accessories, Receptacle With Socket Contacts, For Printed Wiring Boards \(.100 Inch Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

MIL-DTL-55302/142C

Inches

.002

0.05

.100

2.54

.200

5.08

.004

0.10

.110

2.79

.250

6.35

.025

0.64

.116

2.95

.318

8.08

.031

0.79

.118

3.00

.050

1.27

.126

3.20

.087

2.21

.160

4.06

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

4. Metric equivalents are in parentheses.

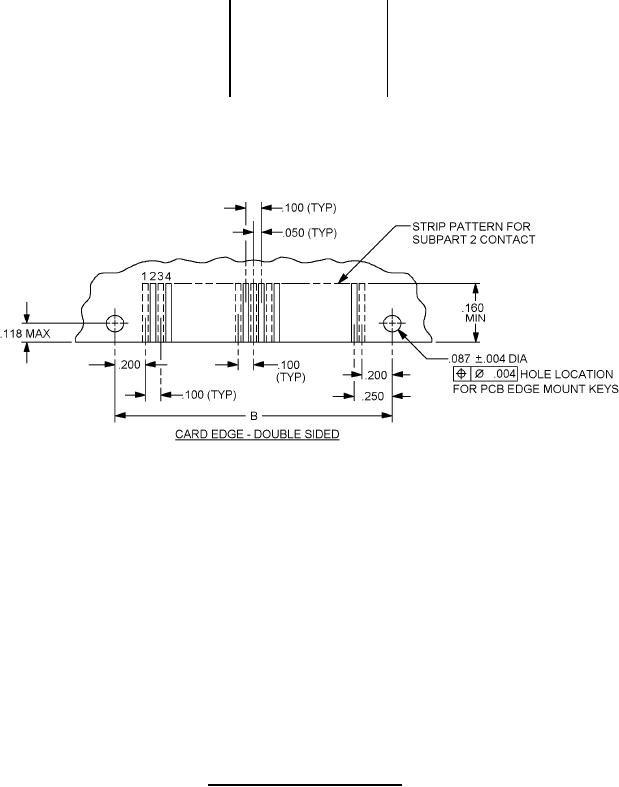

FIGURE 2. Recommended hole patterns � Continued.
