MIL-DTL-55302-142 Connectors, Printed Circuit Subassembly And Accessories, Receptacle With Socket Contacts, For Printed Wiring Boards \(.100 Inch Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

MIL-DTL-55302/142C

Inches

.003

0.08

.100

2.54

.008

0.20

.109

2.77

NOTES:

.011

0.28

.156

3.96

1. Dimensions are in inches.

.018

0.46

.183

4.65

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

.020

0.51

.191

4.85

.022

0.56

.200

5.08

4. Contact accepts no. 22 AWG wire.

5. Contact, crimp type, accepts no 22-26 AWG wires.

.023

0.58

.220

5.59

6. Contact with .025 inch2 (0.64 mm2) wrappost.

.063

1.60

.380

9.65

.069

1.75

.547 13.89

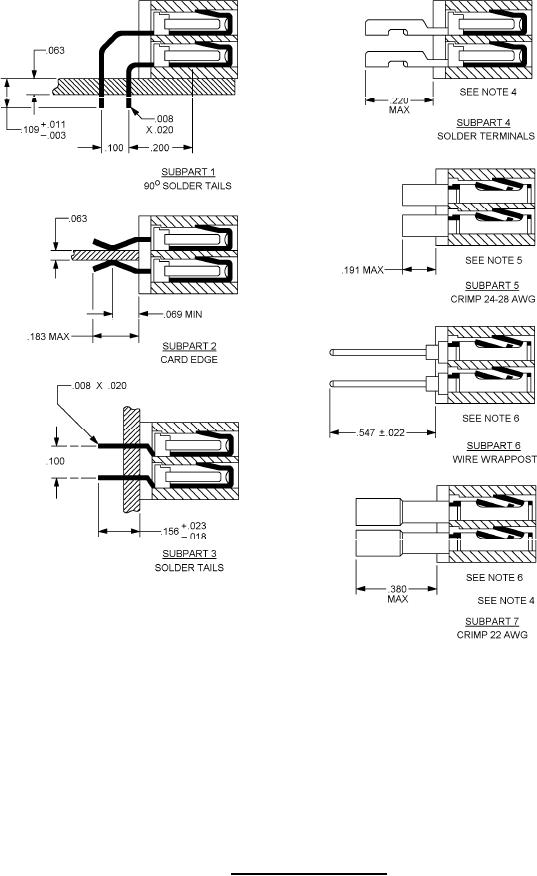

FIGURE 4. Connector terminations.
