MIL-DTL-55302-143 Connectors, Printed Circuit Subassembly And Accessories, Receptacle With Socket Contacts, 3 Keying Guides, For Printed Wiring Boards \(.100 Inch Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

MIL-DTL-55302/143C

Inches

.003

0.08

.100

2.54

.008

0.20

.109

2.77

.011

0.28

.156

3.96

.018

0.46

.183

4.65

.020

0.51

.191

4.85

.022

0.56

.200

5.08

.023

0.58

.220

5.59

.063

1.60

.380

9.65

.069

1.75

.547

13.89

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

4. Contact accepts no. 22 AWG wire.

5. Contact, crimp type, accepts no 22-26 AWG wires.

6. Contact with .025 (0.64 mm) wrappost.

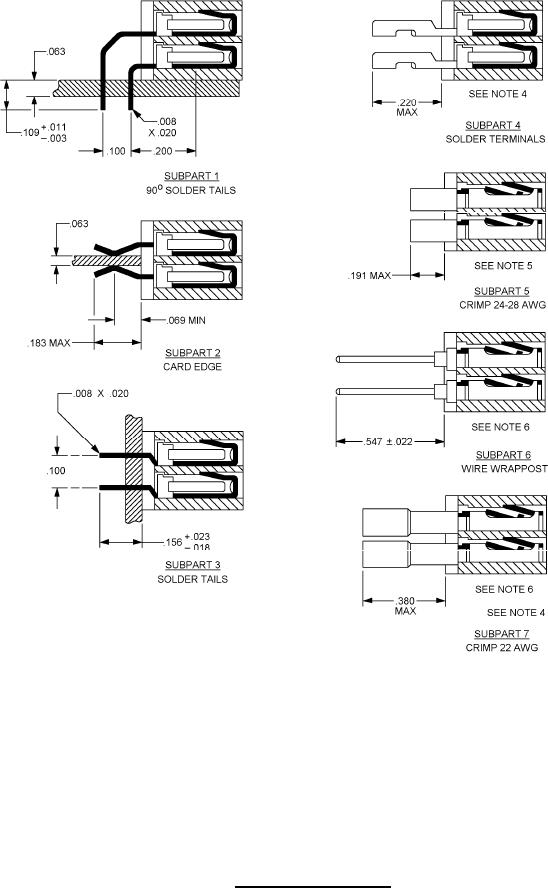

FIGURE 4. Connector terminations.
