MIL-DTL-55302-149 Connectors, Printed Circuit Subassembly And Accessories: Plug With Socket Contacts, 1.516 Inches Length, 2 Keying Pins, For Printed Wiring Boards \(.100 Inch Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


MIL-DTL-55302/149C
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .005 (0.13 mm).

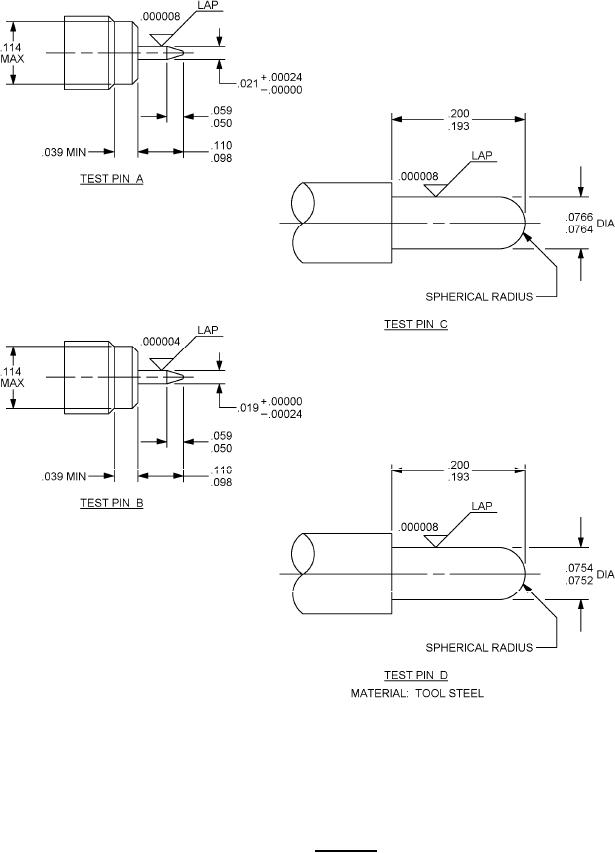

FIGURE 7. Test pins.
