MIL-DTL-55302/149C

Inches

.004

0.01

.110

2.79

.030

0.76

.118

3.00

.050

1.27

.120

3.05

.060

1.52

.200

5.08

.070

1.78.

.240

6.10

.100

2.54

.320

8.13

.106

2.69

1.20

30.5

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

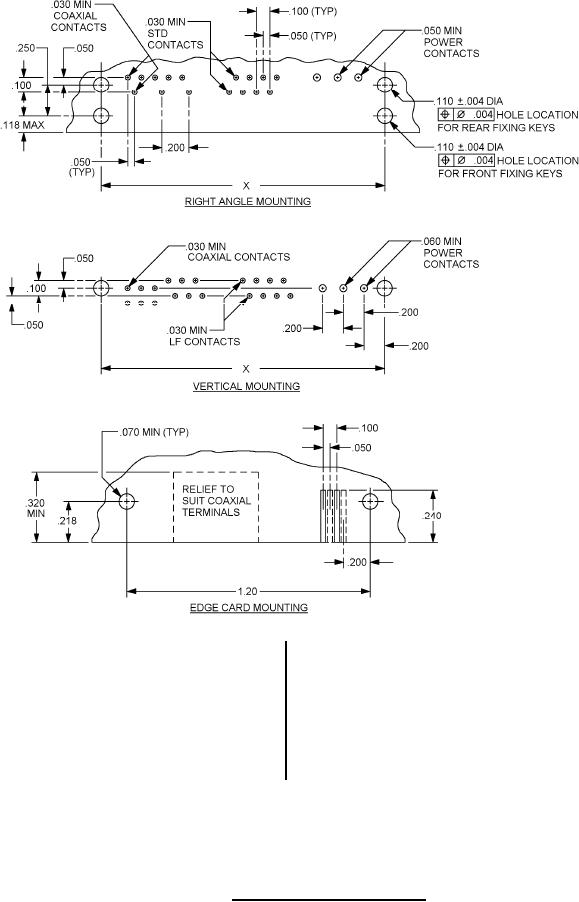

FIGURE 2. Recommended hole patterns.
