MIL-DTL-55302-152 Connectors, Printed Circuit Subassembly And Accessories: Plug With Socket Contacts, 3.315 Inches Length, 2 Keying Pins, For Printed Wiring Boards \(.100 Inch Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

MIL-DTL-55302/152C

Inches

.020

0.51

.138

3.51

.03

0.8

.139

3.53

.063

1.60

.155

3.94

.071

1.80

.157

3.99

.079

2.01

.158

4.01

.09

2.29

.177

4.50

.095

2.41

.185

4.70

.100

2.54

.271

6.88

.110

2.79

.303

7.70

.122

3.10

.317

8.05

.126

3.20

.343

8.71

.374

9.50

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

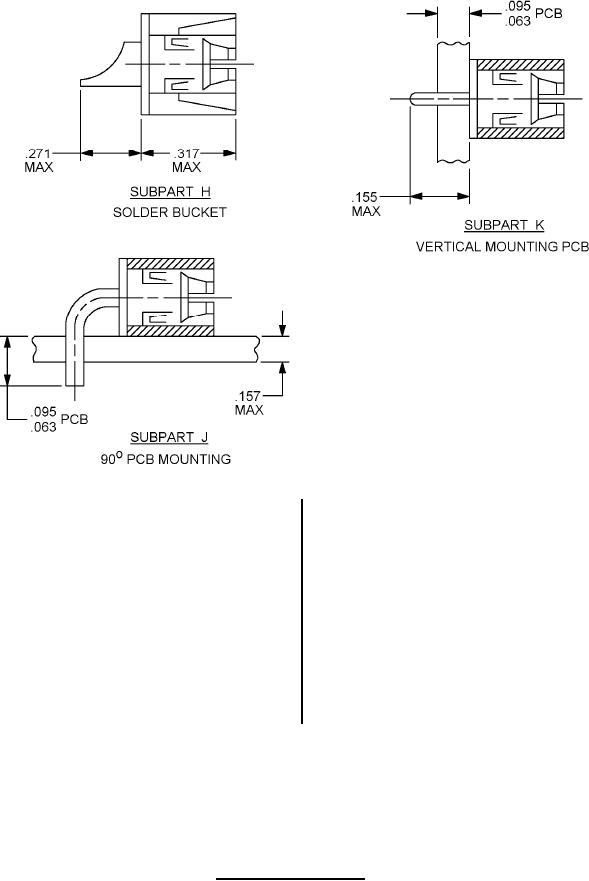

FIGURE 3. Coaxial configurations � Continued.
