MIL-DTL-55302-156 Connectors, Printed Circuit Subassembly And Accessories; Plug, Right Angle, Decade Increments 10 Through 120, 150, 160 And 180 Contact Positions, For Printed Wiring Boards \(.075 Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

INCH-POUND

MIL-DTL-55302/156E

9 March 2005

SUPERSEDING

MIL-C-55302/156D

7 June 1993

DETAIL SPECIFICATION SHEET

CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:

PLUG, RIGHT ANGLE, DECADE INCREMENTS 10 THROUGH 120, 150, 160 AND 180 CONTACT

POSITIONS, FOR PRINTED WIRING BOARDS (.075 SPACING)

This specification is approved for use by all Departments and Agencies of the Department of Defense.

The requirements for acquiring the product described herein shall consist of this specification sheet and

MIL-DTL-55302.

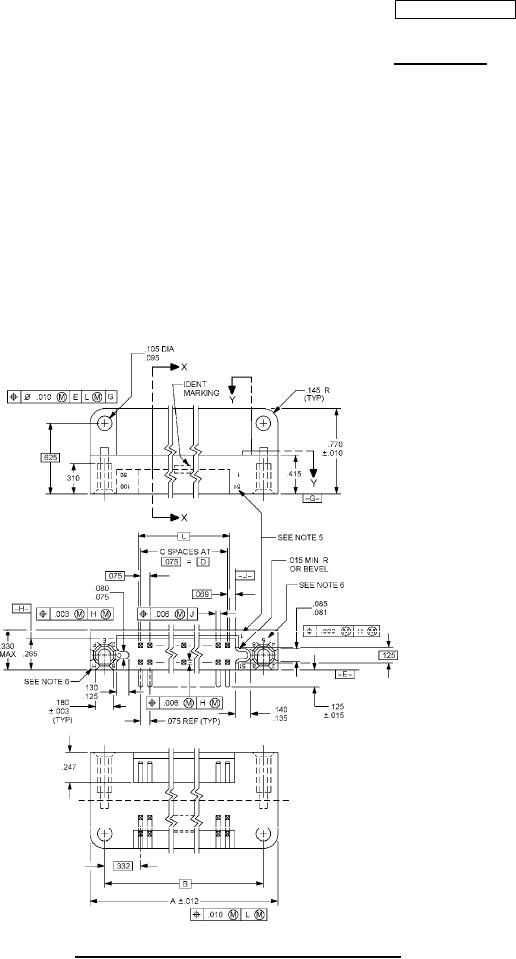

FIGURE 1. Connectors, plug, type I, .075 (1.91 mm) spacing.

AMSC N/A

FSC 5935
