MIL-DTL-55302/161D
NOTES:
1. Dimensions are in millimeters.
2. This is a metric design.
3. Unless otherwise specified, tolerance is ± 0.10 millimeter.
4. These connectors mate with MIL-DTL-55302/164.
5. See table I for mating.
6. Contact identification may be located adjacent to cavity on face or side and may be rotated 180°.
7. Insulator bodies are not to be bonded or affixed in any way such that the front removal feature of
this assembly would be defeated.

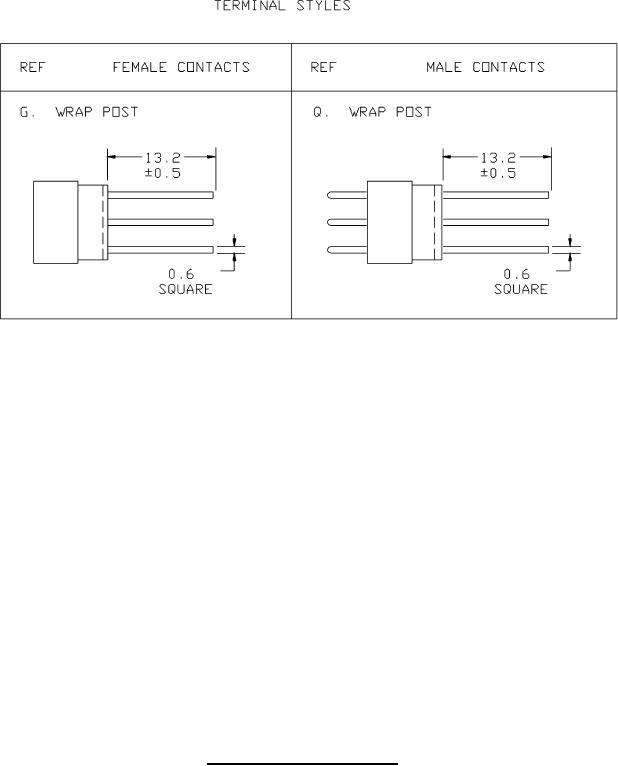

FIGURE 2. Connector termination styles Continued.
4
