MIL-DTL-55302/163D

NOTES:

1. Dimensions are in millimeters.

2. This is a metric design.

3. Unless otherwise specified, tolerance is � 0.10 millimeter.

4. These connectors mate with MIL-DTL-55302/160.

5. See table II for mating.

6. Contact identification may be located adjacent to cavity on face or side and may be rotated 180�.

7. Crimp contacts are shipped not inserted into insulator.

8. Use crimp tool M22520/2-01 for R and K terminal styles with Daniels manufacturing positioner

K547.

9. Use crimp tool M22520/2-01 for M and H terminal styles with Daniels manufacturing positioner

K547 and K640.

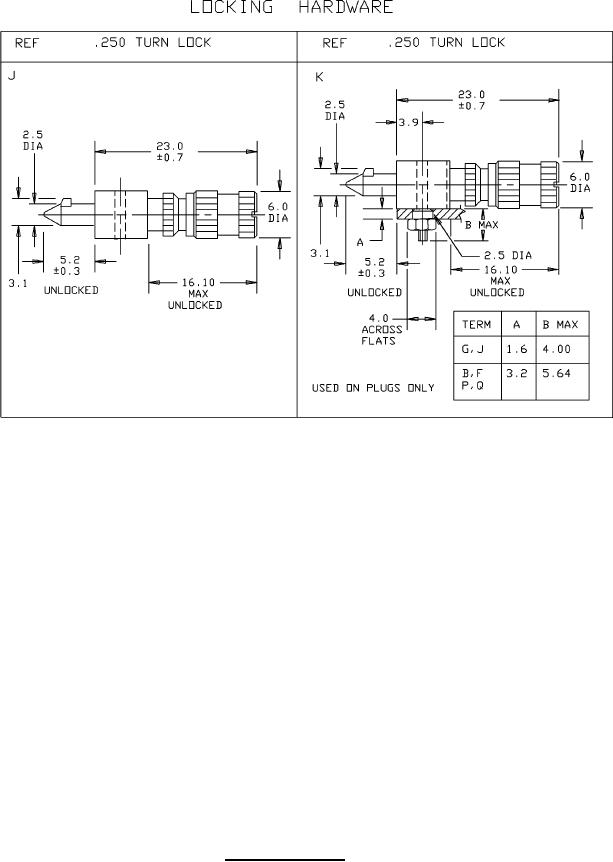

FIGURE 4. Locking hardware � Continued.
